ASTM B649 F904L Stainless Steel Flanges

Stockist of Stainless Steel 904L Slip On Flanges, Global Supplier of SS 904L Weld Neck Flange, 904L Flanges, Stainless Steel 904L Flanges, ANSI B16.5 SS 904L Orifice Flanges, BS10 Table D, Table E, DIN Standard Flanges, SS UNS N08904 Pipe Flanges, SS F904L Flange, SS 904L Blind Flanges Dealer in China.

ANSI B16.5, ANSI B16.47, B16.48, BS4504, BS 10, EN-1092 SS 904L Forged Flanges, Werkstoff No 1.4539 SS Socket Weld Flanges, Stainless Steel ASTM B649 F904L Threaded Flanges, Manufacturer Of ASTM B649 904L SS Plate Flange, 904L SS Lapped joint Flanges in China.

Best Price of 904L SS WNRF Flanges Exporter, ASME SB649 Stainless Steel 904L Class 300 Flange Wholesaler, Stockholder Of Stainless Steel 904L RTJ Flange, Wrought Austenitic Steel 904L Industrial Flanges, SS Grade F904L Flat Flange, SS 904L EN 1092-1 Flanges Traders in China.

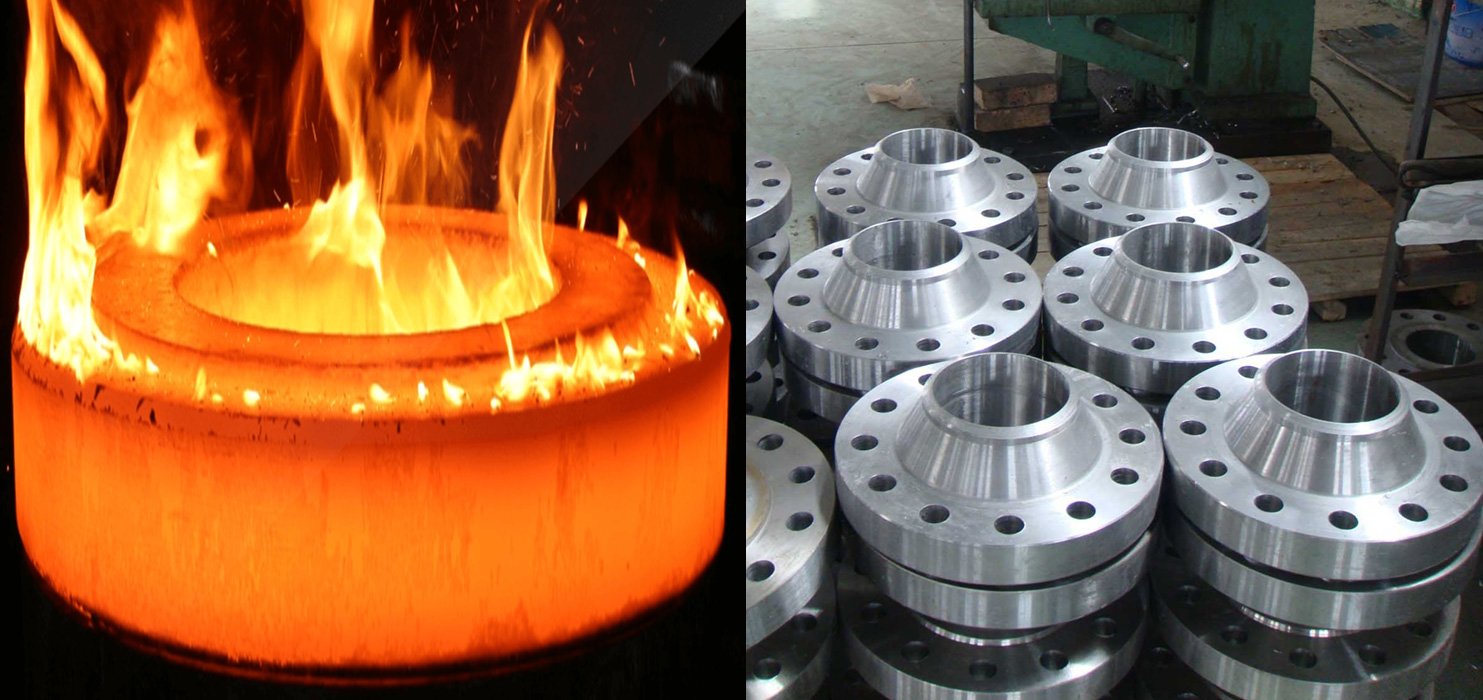

ASTM B649 904L Stainless Steel Flanges

We firmly believe in contributing to an enterprises progress, not only as a provider of goods and services but as a partner in building a strong and booming business. We, Elite Flow Co., Ltd. undertake several strategies and implement them through transporting processes that add to the value of business. We are a manufacturer, supplier and exporter of Stainless Steel 904L Flanges that are a quality product from us, supplied to you through a strong logistical support and with no delay in shipment of consignment.

Our UNS N08904 Stainless Steel Blind Flanges are widely used to close the tail of pipe of a pressure vessel, as they are designed to retain pressure in a high-pressure area, and are resistant to reducing acids like sulphuric acids in petrochemical plants and oil refineries. Our ASTM B649 Stainless Steel Lap Joint Flanges that are superaustenitic flanges, resistant to chloride stress corrosion cracking. They are a cost effective alternative to transport acidic slurries. These SS 904L Threaded Flanges are oxidation and heat resistant. Also We offer wide range of Stainless Steel ASTM B649 904L Flanges such as SS 904L Slip On Flanges, SS 904L Weld Neck Flanges, SS 904L Socket Weld Flanges, SS 904L Blind Flanges, SS 904L Orifice Flanges, SS 904L Spectacle Blind Flanges, SS 904L Screwed / Threaded Flanges, SS 904L Reducing Flanges, SS 904L Ring Type Joint Flanges (RTJ) etc.

Standard Specification For Stainless Steel ASTM B649 904L Industrial Flanges


Specifications : ASTM B649 / SB649

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)


ASTM B649 F904L Stainless Steel Pipe Flanges

Forged and Plate Flanges

Products Size
ASTM B649 SS 904L Slip-On Flanges ASTM B649 SS 904L Threaded Flanges Sizes 1/8″ – 36″
Raised Face or Flat Face
ASTM B649 SS 904L Weld Neck Flanges ASTM B649 SS 904L Socket Weld Flanges
ASTM B649 SS 904L Blind Flanges ASTM B649 SS 904L Reducing Flanges
ASTM B649 SS 904L Lap Joint Flanges ASTM B649 SS 904L Plate Flanges
ASTM B649 SS 904L Orifice Flanges ASTM B649 SS 904L Forged Flanges
ASTM B649 SS 904L Ring Type Joint Flanges ASTM B649 SS 904L Square Flanges

SS 904L Flange Standards / Types And Pressure Class :

ASME/ANSI B 16.5 Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36 Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100

ASME SB649 904L Stainless Steel Flanges Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Types Of Grade 904L Stainless Steel Flanges

Chemical Composition of Grade F904L Stainless Steel Pipe Flanges
Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.00 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00

Mechanical Properties of ASTM B649 SS 904L Plate Flanges
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

ASTM B649 F904L Stainless Steel Flanges Available Types
Stainless Steel 904L Flanges Stainless Steel 904L EN 1092-1 Flanges
Stainless Steel 904L BS 4504 Flanges Stainless Steel 904L Forged Flanges
Stainless Steel UNS N08904 Flanges Stainless Steel 904L Slip on Flanges
SS 904L Flat Flange Suppliers ANSI 904L Stainless Steel Blind Flange
SS 904L Weld Neck Flanges Dealer SS 904L Socket weld Flanges Exporter
SS 904L Long Weld Neck Flanges Stockholder Steel 904L Threaded Flanges Distributors
Stainless Steel SUS 904L Reducing Flanges SS 904L Ring Type Joint Flanges Manufacturer
Stainless Steel DIN 1.4539 Orifice Flange Stainless Steel BS 904S11 Spectacle Blind Flanges
Stainless Steel 904L WNRF Flange Stainless 904L SORF Flanges
ANSI B16.5 SS 904L RTJ Flanges SS 904L Screwed Flanges Stockist
ASTM B649 SS 904L Lap Joint Flanges ASME SB649 SS 904L BLRF Flange
Stainless Steel 904L Raised Face Flanges 904L SS Nipoflange
B649 SS 904L Square Flanges ASME SB649 SS 904L SWRF Flange
Steel 904L Tongue & Groove Flanges SS 904L Male & Female Flanges
Stainless Steel 904L DIN Flanges SS 904L ASME B16.5 Flanges

Stainless Steel 904L AISI, ASME, DIN, BS, EN Flanges Application

ASTM B649 904L Pipe Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM B649 904L Stainless Steel Flanges through a worldwide network of stock-keeping branches. These ASTM B649 904L Flange is use in various industries like :

  • Stainless Steel 904L Flanges uses in Oil and Gas Pipeline
  • ASTM B649 SS 904L Pipe Flanges uses in Chemical Industry
  • Grade 904L Stainless Steel Flanges uses in Plumbing
  • Stainless Steel ASTM B649 904L Flange uses in Heating
  • ASTM B649 904L Plate Flanges uses in Water Supply Systems
  • ASTM B649 904L Stainless Steel Forged Flanges uses in Power Plant
  • SS 904L Flanges uses in Paper & Pulp Industry
  • 904L SS Flanges uses in General Purpose Applications
  • ASME SB649 SS 904L Industrial Flanges uses in Fabrication Industry
  • Stainless Steel 904L Flanges uses in Food Processing Industry
  • ANSI SS 904L Flanges uses in Structural Pipe
