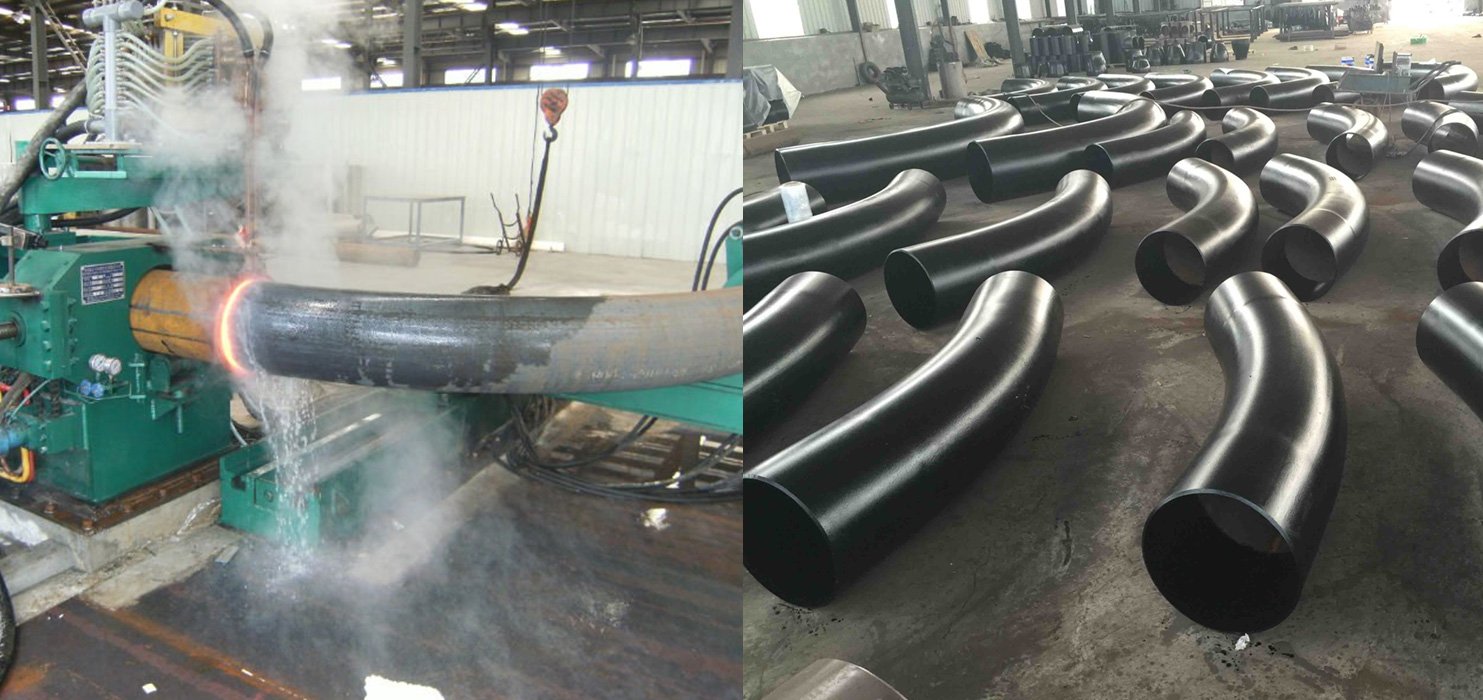

At present, the demand of Alloy Steel ASTM A234 WP22 Pipe Bends has become very high because of high quality in itself. Elite is the one offering the wide array of product to its valuable buyers. The Chrome Moly WP22 Bend is fabricated in the industry by using good quality of alloy with proper use of modern technology and equipment. The industry is fully contributing in bringing out the appreciable quality of pipe bends that can last for a very long time without soon replacement. With this company customers can have a profitable deal and of course good buying experience.
Specification
• Standard specification- The standard specification of the product is ASME SA234, ASTM A234, ANSI/ASME B16.28/B16.9, MSS SP75/43.
• Size- The product is available in sizes as seamless ½” to 24”, fabricated/ERW/welded 2” to 36”.
• Outer Diameter- it is ranging in 38.0mm to 206.0mm.
• Wall thickness- WT of the product is differently ranging as 3.00mm, 1.5mm, and 2.0mm and custom made.
• Bending angle- It is available in angles like 15D, 180D, 135D, 45D, 60D, 90D, and 30D.
• Bed Radii- It is available as 75/ 100/ 1500/ 800/ 500/ 250/ 1000/ 1200mm.
• Bending Radius- It is ranging in 1D, 3D, 2D, 10D, 8D, 6D, 5D and custom made.
Testing-
Various tests to check quality is executed like-
1. Hardness test
2. Flattening/flaring test
3. Macro/micro test
4. Pitting resistance test
5. Chemical/mechanical test
Packaging-
For safer shipping to its buyers, the product is carefully packed in standard packaging technique-
• Shrink-wrapping
• Carton boxes
• Wooden boxes/crates/pallets
• Customized
Determine all needs and then order ASTM A234 Alloy Steel WP22 Piggable Bend as per the application demand to deal at reasonable rates.
Specifications : ASTM A234 & ASME SA234
Dimensions : ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
Size : Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter : 38.0 mm – 206.0 mm
Wall Thickness : 1.5 mm / 2.0 mm / 3.0 mm – greater wall thickness at request
Bend Radii : 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R): R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°
| ASME Pipe Bend | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN Pipe Bend | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN Pipe Bend | EN10253-1, EN10253-2 |
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP22 | 415 - 585 | ≥205 | ≥20 |
| Alloy Steel WP22 Pipe Bend | Alloy Steel WP22 Buttweld Bend |
| Alloy Steel WP22 Mandrel Bends | Alloy Steel WP22 Long Radius Bend |
| Alloy Steel A234 WP22 Piggable Bend | Alloy Steel WP22 Hot Induction Bend |
| ASTM A234 WP22 Seamless Pipe Bend Suppliers | ANSI WP22 Welded Pipe Bend |
| Chrome Moly A234 WP22 U Pipe Bend Dealer | Alloy Steel A234 WP22 J Pipe Bend Exporter |
| Alloy WP22 Mitered Pipe Bend Stockholder | Steel WP22 3D Pipe Bend Distributors |
| Chrome Moly Alloy Steel WP22 5D Pipe Bend | A234 WP22 10D Pipe Bend Manufacturer |
| A234 WP22 Alloy Steel 2.5D Pipe Bend | WP22 Alloy Steel 22D Pipe Bend |
| Alloy Steel 2 1/4Cr-1Mo Customized Pipe Bend | Chrome Moly Alloy A234 WP22 Bend |
| ANSI B16.9 Alloy Steel WP22 12D Pipe Bending | Alloy Steel WP22 High Pressure Bending Stockist |
| ASTM A234 Alloy WP22 180 Degree Pipe Bend | ASME SA234 Alloy Steel WP22 DIN Pipe Bend |
| Chrome Moly Alloy Steel WP22 EN Pipe Bend | WP22 Alloy Steel ASME Pipe Bend |
| A234 WP22 Small Size Pipe Bending | ASME SA234M Alloy WP22 Pipe Bend Elbow |
| Steel WP22 90 Degree Pipe Bend | A234 WP22 160 Deg Pipe Bend |
ASTM A234 WP22 Alloy Steel Pipe Bends are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A234 WP22 Alloy Steel Buttweld Bend through a worldwide network of stock-keeping branches. These ASTM A234 WP22 Pipe Bend is use in various industries like :
A Wide Range Of the Best Quality ASTM A234 WP22 Alloy Steel Pipe Bend, a234 wp22 chemical composition, astm a234 wp22, sa234 wpb material specification, a234 wp22 fittings, wp22 material, astm a234 wpb chemical composition, astm a234 wpb pdf, astm a234 wpb mechanical properties, a234 wp22 Pipe Bend price list, alloy steel wp22 Pipe Bends price, a234 wp22 Pipe bends dimensions pdf, a234 wp22 alloy steel 180 degree pipe bender, alloy steel wp22 bend dimensions, Small size pipe bending, Large size pipe bending, Butt-welded pipe bending, a234 wp22 ss 180 Degree pipe bend Manufacturer, Supplier in China.
MIDDLE EAST Saudi Arabia |
AFRICA Nigeria NORTH AMERICA Usa |
EUROPE Russia |
ASIA India SOUTH AMERICA Argentina |
We are renowned & most acclaimed Source, Stock, Distribution, Manufacturer, Suppliers, Stockholder, Traders, Wholesaler, Dealer, Distributor, Importer & Exporter, Fabricator, Stockist of ASTM A234 WP22 Buttweld Pipe Bends in Alloy Steel.
For More Information About ASTM A234 WP22 Alloy Steel Pipe Bends Please Call +86-577-66965398 or Send an Email to sales@eliteflowpiping.com
