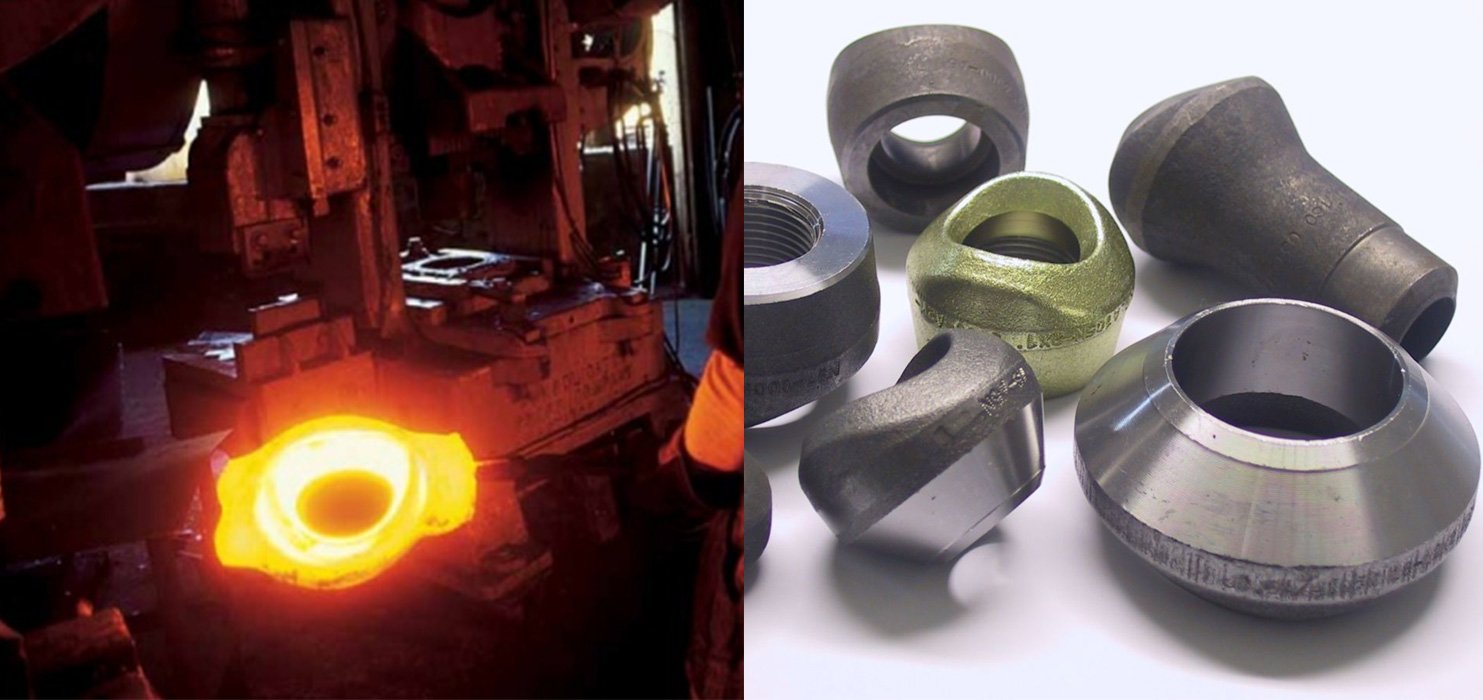

Founded in 1980, Elite Flow Co., Ltd., an ISO 9001:2000 certified supplier and exporter, is the powerhouse of quality resources to many large scale and small scale industries. For us, nothing matters more than being able to give our 100% to each task that we do, in the process gaining the trust of our clients. We are manufacturers of Inconel Outlets, which are branch connection fittings forming clever and dynamic piping networks at low cost. Outlet is a more inclusively used term; an olet is welded to the side of the main run where a void is formed, to which another pipe, of similar or varying length, is joined to the main run line. Our UNS N06600 Inconel Welding Outlets work from cryogenic to higher temperatures; they are used to redeem the natural strength of the main pipe by reinforcing themselves onto the hole of the pipe.
ASTM B366 Inconel 625 Threaded Outlets are considered as butt weld fittings as they have bevelled ends for a smoother assembly. They possess exceptional prowess against corrosive media, especially due to the added Aluminium that also prevents high-temperature oxidation. Also We offer wide range of Inconel ASTM B366 Outlets such as Inconel 600 Welding Outlets, 601 Inconel Alloy Threaded Outlets, ASTM B366 Inconel 625 Socketweld Outlets, Inconel Alloy 718 Elbow Outlets, 600 Alloy Lateral Outlets, 625 Inconel Alloy Nipple Outlets etc.
Specifications : ASTM B366 & ASME SB366
Dimensions : ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc
Size : 1/8"-4" (DN6-DN100)
Connect Type : Welded, threaded, BW, SW
Process : Free forging, plate cutting .forged
Grades : Inconel 600, 601, 625, 718, 783, 690, x750 Outlets
| ASTM B366 / ASME SB366 | Standard Specification for Steel Piping Fittings |
| ASME B16.11 | Forged Fittings Socket – Welding and Threaded |
| MSS SP-97 | Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
| Inconel 600 Outlets | Inconel 601 Outlets |
| Inconel 625 ASTM B366 Branch Connection Fittings | Inconel 718 Outlets Pipe Fittings |
| Inconel UNS N06600 Elbow Outlet | Inconel 625 Welding Outlet |
| ASTM B366 Inconel UNS N06601 Socketweld Outlet Suppliers | DIN 2.4816 Inconel Nipple Outlet |
| Inconel UNS N06601 Swagged Nipple Outlet Dealer | Inconel 600 Threaded Outlet Exporter |
| Alloy UNS N06625 Insert weldolet Stockholder | Inconel DIN 2.4851 Branzolet Distributors |
| DIN 2.4856 Inconel Coupolet | 718 Inconel Sweepolet Manufacturer |
| Inconel UNS N07718 Flangeolet | 625 Inconel 45°Outlets |
| Inconel DIN 2.4668 Insert Weld Outlets | 600 Alloy Welding Outlets |
| ANSI B16.11 600 Alloy Threading Outlets | Inconel 625 Socket weld Outlets Stockist |
| 601 Inconel Sweep Outlets | ASME SB366 Inconel 625 Nipple Outlets |
| Inconel 601 Threaded Outlets | 718 Inconel Pipe Outlets |
| MSS SP-97 Inconel 600 Pipe Outlets | ASME SB366M Inconel 625 90°Outlets |
ASTM B366 Inconel Outlets are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM B366 Inconel Outlets through a worldwide network of stock-keeping branches. These ASTM B366 Inconel Branch Connection is use in various industries like :
A Wide Range Of the Best Quality ASTM B366 Inconel 600 Outlets, b366 Outlets price list, inconel outlets price, Branch Connection Fittings, Outlets Pipe Fittings, Branch Connection, Outlets Fittings, MSS SP-97 Outlets, Industrial Outlets, Outlets Fittings, Swagged Nipple Outlet, Insert weldolet, 625 inconel Branzolet, Coupolet, Sweepolet, Flangeolet, Branch Outlets Fittings, Pipe Outlets, Forged Branch Outlets Fittings, Inconel Alloy 718 Threaded Pipe Outlets, Manufacturer, Supplier in China.
MIDDLE EAST Saudi Arabia |
AFRICA Nigeria NORTH AMERICA Usa |
EUROPE Russia |
ASIA India SOUTH AMERICA Argentina |
We are renowned & most acclaimed Source, Stock, Distribution, Manufacturer, Suppliers, Stockholder, Traders, Wholesaler, Dealer, Distributor, Importer & Exporter, Fabricator, Stockist of ASTM B366 Outlets Fittings in Inconel.
For More Information About ASTM B366 Inconel Outlets Please Call +86-577-66965398 or Send an Email to sales@eliteflowpiping.com
